Baculum API and Web GUI Tools

This chapter presents the Bacula Web based interface that has been added to the Bacula project for version 7.0 and later.

Base Features

Baculum provides the following base features:

General Requirements

Environment for Baculum Web installation should have following components installed:

Environment for Baculum API installation should have following components installed:

With installation from binary packages (deb, rpm) all requirements will be automatically installed as packages dependencies.

Installation Baculum API from rpm binary packages

Note Before start using Baculum API and Baculum Web version 9.0.0 please backup your Bacula configuration in safe place. It is specially important because on first save config action the Bacula configuration is joined into one file per Bacula component.

For rpm binary there are the following packages:

Add the Baculum rpm repository

To add the Baculum repository, first you must import the Baculum public key:

rpm --import http://bacula.org/downloads/baculum/baculum.pub

Once the key is imported, the next step is to add the repository definition. First you must create the following file:

/etc/yum.repos.d/baculum.repo

The for CentOS 7, put the following in the file just created:

[baculumrepo]
name=Baculum CentOS repository
baseurl=http://bacula.org/downloads/baculum/stable/centos
gpgcheck=1
enabled=1

For Fedora 28 the bacula.repo file should have the following contents:

[baculumrepo]
name=Baculum Fedora repository
baseurl=http://bacula.org/downloads/baculum/stable/fedora
gpgcheck=1
enabled=1

Installation for the Apache

Install the Baculum API for the Apache Web server as follows:

yum install baculum-common baculum-api baculum-api-httpd

Restart your Apache Web server:

service httpd restart

Installation for Lighttpd

Installation on system with access via Lighttpd is as follows

yum install baculum-common baculum-api baculum-api-lighttpd

Please note that in case CentOS distribution the Lighttpd web server is available in the distribution packages after enabling the EPEL repository.

Start Baculum as application using the Lighttpd Web server:

service baculum-api-lighttpd start

Access to bconsole via sudo for Apache and Lighttpd

Baculum API requires access to Bconsole and to Bacula JSON programs. To configure Bconsole sudo access and the Bacula JSON programs access there can use following entries in newly created Baculum sudoers.d file (usually in path /etc/sudoers.d/baculum):

In case default Apache user, the file contents must be:

Defaults:apache !requiretty
apache  ALL=NOPASSWD:  /usr/sbin/bconsole
apache  ALL=NOPASSWD:  /usr/sbin/bdirjson
apache  ALL=NOPASSWD:  /usr/sbin/bsdjson
apache  ALL=NOPASSWD:  /usr/sbin/bfdjson
apache  ALL=NOPASSWD:  /usr/sbin/bbconsjson

In case default Lighttpd user the file contents must be:

Defaults:lighttpd !requiretty
lighttpd  ALL=NOPASSWD:  /usr/sbin/bconsole
lighttpd  ALL=NOPASSWD:  /usr/sbin/bdirjson
lighttpd  ALL=NOPASSWD:  /usr/sbin/bsdjson
lighttpd  ALL=NOPASSWD:  /usr/sbin/bfdjson
lighttpd  ALL=NOPASSWD:  /usr/sbin/bbconsjson

Installation Baculum API from deb binary packages

Note Before start using Baculum API and Baculum Web version 9.0.0 please backup your Bacula configuration in safe place. It is specially important because on first save config action the Bacula configuration is joined into one file per Bacula component.

For deb binary there are the following packages:

Add the Baculum deb repository

To add the Baculum repository, first import the Baculum public key:

wget -qO - http://bacula.org/downloads/baculum/baculum.pub | apt-key add -

Once the key is imported, the next step is to create a new baculum file:

/etc/apt/sources.list.d/baculum.list

For Debian 8 Jessie the contents should be:

deb http://bacula.org/downloads/baculum/stable/debian jessie main
deb-src http://bacula.org/downloads/baculum/stable/debian jessie main

For Debian 9 Stretch the contents should be:

deb http://bacula.org/downloads/baculum/stable/debian stretch main
deb-src http://bacula.org/downloads/baculum/stable/debian stretch main

For Ubuntu 16.04 Xenial the contents should be:

deb [ arch=amd64 ] http://bacula.org/downloads/baculum/stable/ubuntu xenial main
deb-src http://bacula.org/downloads/baculum/stable/ubuntu xenial main

For Ubuntu 18.04 Bionic the contents should be:

deb [ arch=amd64 ] http://bacula.org/downloads/baculum/stable/ubuntu bionic main
deb-src http://bacula.org/downloads/baculum/stable/ubuntu bionic main

After adding repository definition, please refresh repository indexes:

apt-get update

Installation for Apache

To install Baculum API access via Apache Web server by using apt packages manager use the command:

apt-get install baculum-common baculum-api baculum-api-apache2

Next you must enable mod_rewrite module for Apache, with the following command:

a2enmod rewrite

and include Baculum VirtualHost definition in the Apache configuration with:

a2ensite baculum-api

The restart your Apache server with:

service apache2 restart

Installation for Lighttpd

Example installation with access via Lighttpd web server looks following:

apt-get install baculum-common baculum-api baculum-api-lighttpd

Start Baculum API as application available through Lighttpd web server:

service baculum-api-lighttpd start

Access to bconsole via sudo for Apache and Lighttpd

Baculum API requires access to Bconsole and to the Bacula JSON programs. To configure Bconsole sudo access we strongly recommend that you create a Baculum sudoers.d file, which should be in /etc/sudoers.d/baculum:

Note, please define sudo for the Bacula JSON programs only when you are going use Bacula configuration module in the Baculum.

Both for Apache and Lighttpd user the file contents can be:

Defaults:www-data !requiretty
www-data  ALL=NOPASSWD:  /usr/sbin/bconsole
www-data  ALL=NOPASSWD:  /usr/sbin/bdirjson
www-data  ALL=NOPASSWD:  /usr/sbin/bsdjson
www-data  ALL=NOPASSWD:  /usr/sbin/bfdjson
www-data  ALL=NOPASSWD:  /usr/sbin/bbconsjson

Debugging your First Baculum API Login

At each step of the initial login to Baculum, the screen will have a test button that will allow you to check to see if your parameters were correctly entered. If not, you will see error message on the wizard page. You can also get additional detail by examining the Apache error log, that is usually found at:

/var/log/httpd/baculum-api-error.log

If you use Lighttpd thento get additional detail you can check:

/var/log/lighttpd/baculum-api-error.log

In addition, special debug output is placed by Baculum in the file:

/usr/share/baculum/htdocs/protected/API/Logs/baculum-api.log

The debug you can enable in file:

/usr/share/baculum/htdocs/protected/API/Config/api.conf

by switching in [api] section option debug to "1".

With the information in those two files, you can usually quickly find and correct most problems.

Installation Baculum Web from rpm binary packages

Installation for the Apache

Install the Baculum Web for the Apache Web server as follows:

yum install baculum-common baculum-web baculum-web-httpd

Restart your Apache Web server:

service httpd restart

Installation for Lighttpd

Installation on system with access via Lighttpd is as follows

yum install baculum-common baculum-web baculum-web-lighttpd

Please note that in case CentOS distribution the Lighttpd web server is available in the distribution packages after enabling the EPEL repository.

Start Baculum as application using the Lighttpd Web server:

service baculum-web-lighttpd start

Installation Baculum Web from deb binary packages

Installation for Apache

To install Baculum Web access via Apache Web server by using apt packages manager use the command:

apt-get install baculum-common baculum-web baculum-web-apache2

Next you must enable mod_rewrite module for Apache, with the following command:

a2enmod rewrite

and include Baculum VirtualHost definition in the Apache configuration with:

a2ensite baculum-web

The restart your Apache server with:

service apache2 restart

Installation for Lighttpd

Example installation with access via Lighttpd web server looks following:

apt-get install baculum-common baculum-web baculum-web-lighttpd

Start Baculum Web as application available through Lighttpd web server:

service baculum-web-lighttpd start

Running Baculum API and Web for the First Time

Running Baculum API

Access to Baculum API from web browser: http://localhost:9096

First time login: admin

First time password: admin

Running Baculum Web

Access to Baculum Web from web browser: http://localhost:9095

First time login: admin

First time password: admin

Installation wizards

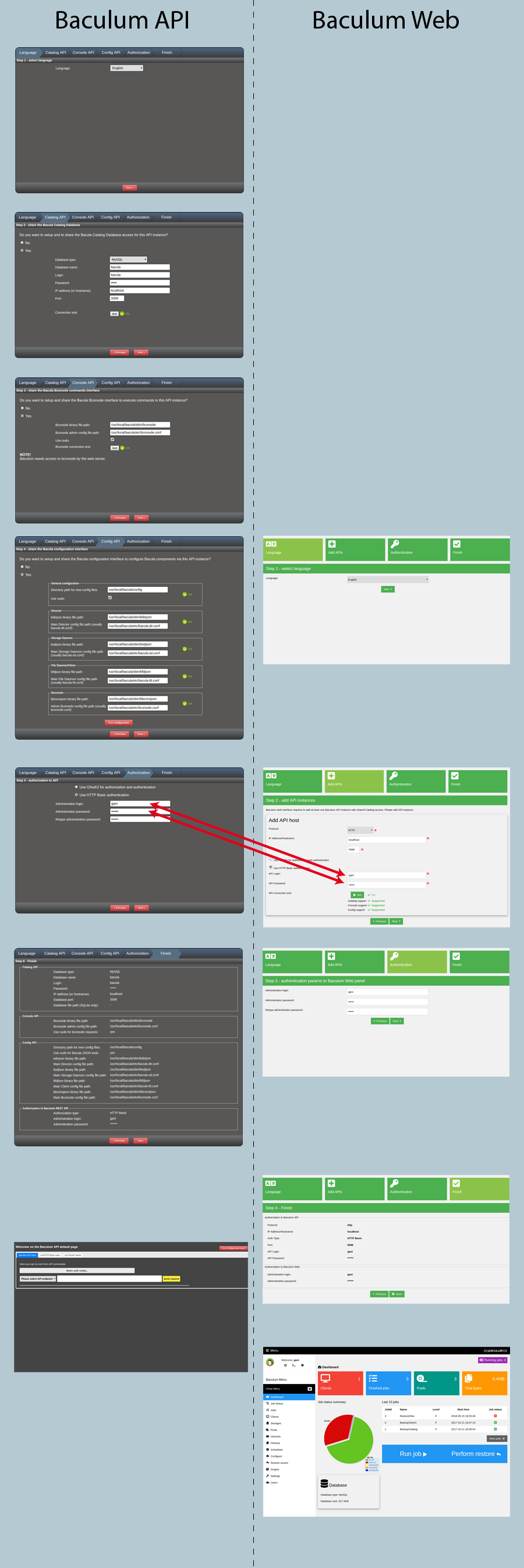

Installation with HTTP Basic authentication

Image baculum_install_basic

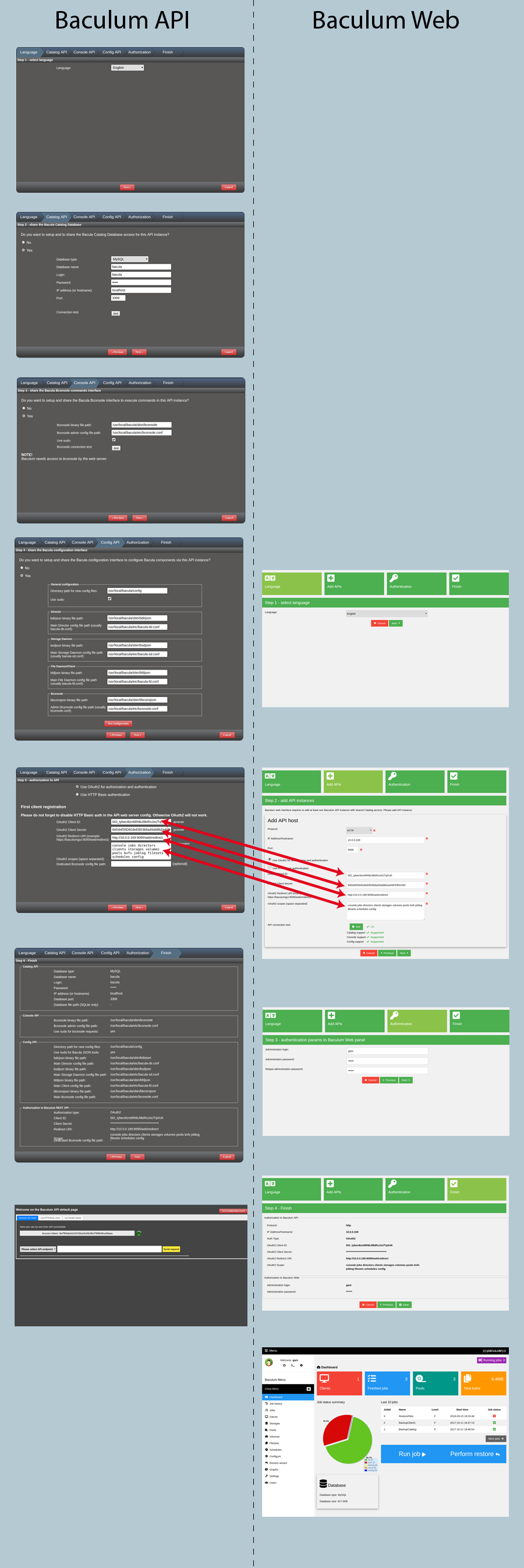

Installation with OAuth2 authorization

Image baculum_install_oauth2

Baculum API endpoints

Clients

GET /api/clients - get records all clients

GET /api/clients/limit/4 - get records first 4 clients

GET /api/clients/2 - get records only for client with clientid equal 2

GET /api/clients/show - get 'show clients' bconsole command

GET /api/clients/show/2 - get 'show client=xxx' bconsole command for client with clientid equal 2

GET /api/clients/status/2 - get 'status client=xxx' bconsole command for client with clientid equal 2

GET /api/clients/jobs/2 - get all jobs done by client with clientid equal 2

Errors:

0 - No errors.

1 - Invalid command.

2 - Problem with connection to database.

3 - Database access is not supported by this API instance.

4 - Problem with connection to bconsole.

5 - Invalid director.

6 - Problem with authorization to Baculum API.

7 - Access attempt to not allowed resource. Permission denied.

10 - Client with inputted clientid does not exists.

11 - Bconsole support is disabled.

1000 - Internal error.

Storages

GET /api/storages/ - get records all storages.

GET /api/storages/limit/25 - get records first 25 storages.

GET /api/storages/3 - get records only for storage with storageid equal 3.

GET /api/storages/show - get 'show storages' bconsole command.

GET /api/storages/show/3 - get 'show storage=xxx' bconsole command for storage with storageid equal 3.

GET /api/storages/status/3 - get 'status storage=xxx' bconsole command for storage with storageid equal 3.

GET /api/storages/mount/3/2/17 - mount storage with storageid equal 3, drive number 2 and volume in slot number 17.

GET /api/storages/umount/3/1 - umount storage with storageid equal 3 and drive number 1.

GET /api/storages/release/3 - release storage with storageid equal 3.

Errors:

0 - No errors.

1 - Invalid command.

2 - Problem with connection to database.

3 - Database access is not supported by this API instance.

4 - Problem with connection to bconsole.

5 - Invalid director.

6 - Problem with authorization to Baculum API.

7 - Access attempt to not allowed resource. Permission denied.

11 - Bconsole support is disabled.

20 - Storage with inputted storageid does not exists.

1000 - Internal error.

Volumes

GET /api/volumes/ - get records all volumes.

GET /api/volumes/limit/50 - get records first 50 volumes.

GET /api/volumes/5 - get records only for volume with mediaid equal 5.

GET /api/volumes/prune/5 - call prune action on volume with mediaid equal 5.

GET /api/volumes/purge/5 - call purge action on volume with mediaid equal 5.

GET /api/volumes/jobs/5 - get all jobs done on volume with mediaid equal 5.

GET /api/volumes/required/7/1234/ - get all volumes required to restore file with fileid equal 1234 and jobid equal 7.

Errors:

0 - No errors.

1 - Invalid command.

2 - Problem with connection to database.

3 - Database access is not supported by this API instance.

4 - Problem with connection to bconsole.

5 - Invalid director.

6 - Problem with authorization to Baculum API.

7 - Access attempt to not allowed resource. Permission denied.

11 - Bconsole support is disabled.

30 - Volume with inputted mediaid does not exists.

1000 - Internal error.

Pools

GET /api/pools/ - get records all pools.

GET /api/pools/limit/15 - get records first 15 pools.

GET /api/pools/7 - get records only for pool with poolid equal 7.

GET /api/pools/show - get 'show pools' bconsole command.

GET /api/pools/show/7 - get 'show pool=xxx' bconsole command for pool with poolid equal 7.

PUT /api/pools/update/7 - call 'update pool=xxx' bconsole command for pool with poolid equal 7.

Errors:

0 - No errors.

1 - Invalid command.

2 - Problem with connection to database.

3 - Database access is not supported by this API instance.

4 - Problem with connection to bconsole.

5 - Invalid director.

6 - Problem with authorization to Baculum API.

7 - Access attempt to not allowed resource. Permission denied.

11 - Bconsole support is disabled.

40 - Pool with inputted poolid does not exists.

1000 - internal error.

Jobs

GET /api/jobs/ - get records all jobs.

GET /api/jobs/limit/20 - get records first 20 jobs.

GET /api/jobs/8 - get records only for job with jobid equal 8.

GET /api/jobs/tasks/ - get job names for all directors

GET /api/jobs/tasks/type/B - get backup job names

GET /api/jobs/tasks/type/R/limit/5 - get first 5 restore job names

GET /api/jobs/recent/myjob/client/myclient-fd/filesetid/62/ - get most recent job identifiers for job "myjob", client "myclient-fd" and fileset with filesetid 62

GET /api/jobs/recent/myjob/clientid/31/filesetid/62/ - get most recent job identifiers for job "myjob", client with clientid 21 and fileset with filesetid 62

POST /jobs/estimate/ - call estimate action on a job.

+-----------------------------------------------------------------------------+
|                      /api/jobs/estimate/ POST request                       |
+-------------------+---------+-----------------------------------------------+
| Name              |  Type   |    Description                                |
+-------------------+---------+-----------------------------------------------+
| create[id] *      | integer | job id to get job name for estimate purpose   |
|                   |         | (used instead job name)                       |
+-------------------+---------+-----------------------------------------------+
| create[name] *    | string  | job name to estimate (used instead of jobid)  |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[fileset] * | string  | FileSet resource name                         |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[level] *   | string  | Job level in short form.                      |
|                   |         | One case sensitive letter:                    |
|                   |         |    F => Full                                  |
|                   |         |    I => Incremental                           |
|                   |         |    D => Differential                          |
|                   |         |    B => Base                                  |
|                   |         |    f => VirtualFull                           |
|                   |         |    V => InitCatalog                           |
|                   |         |    C => Catalog                               |
|                   |         |    O => VolumeToCatalog                       |
|                   |         |    d => DiskToCatalog                         |
+-------------------+---------+-----------------------------------------------+
| create[clientid] *| integer | Client identifier                             |
|                   |         | (used instead of client name)                 |
+-------------------+---------+-----------------------------------------------+
| create[client] *  | string  | Client name (used instead of client id)       |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[accurate] *| integer | Enable accurate mode: 0 - no, 1 - yes         |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+

* - required field

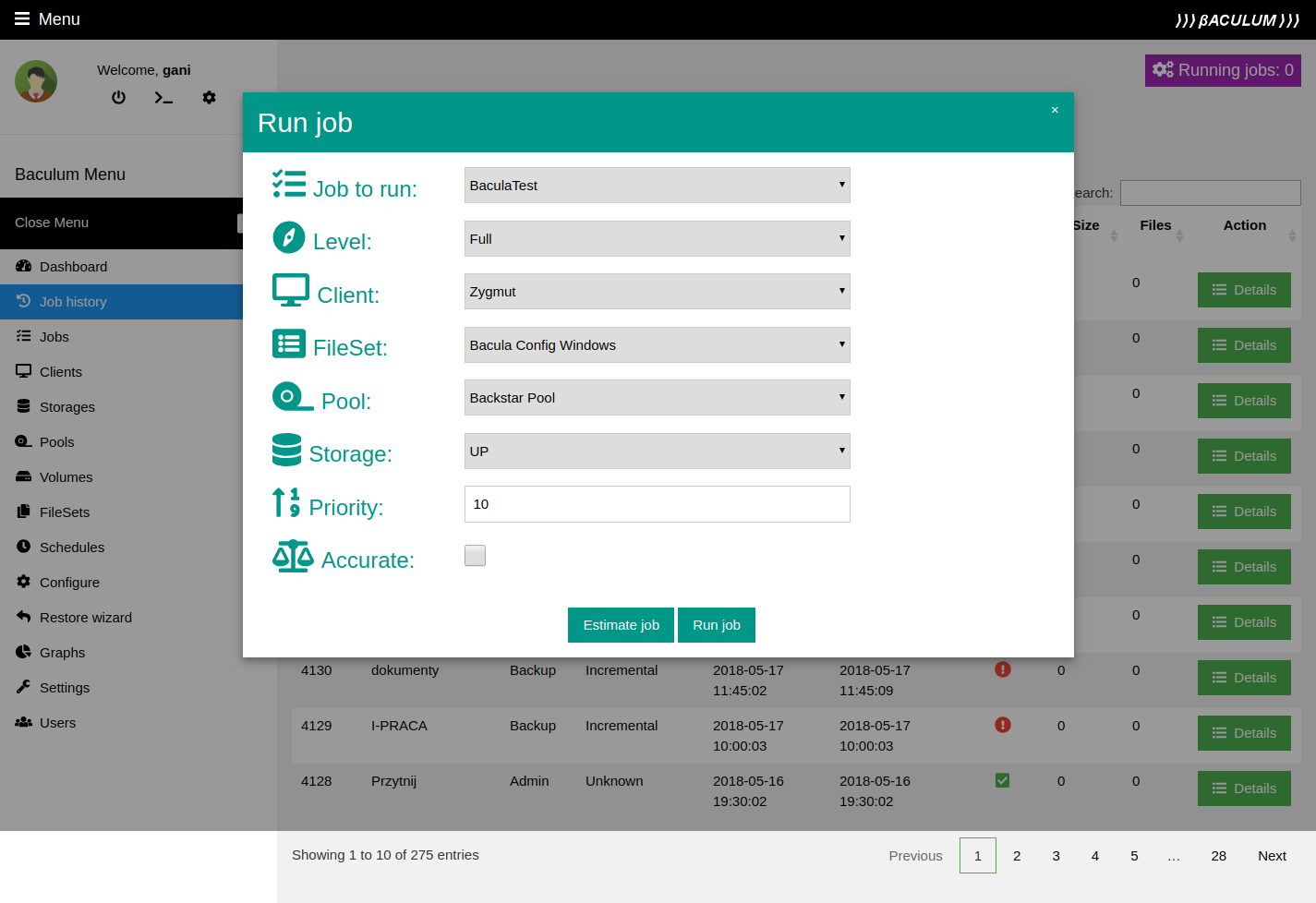

POST /api/jobs/run/ - call run action on job (run job).

+-----------------------------------------------------------------------------+
|                      /api/jobs/run/ POST request                            |
+-------------------+---------+-----------------------------------------------+
| Name              |  Type   |    Description                                |
+-------------------+---------+-----------------------------------------------+
| create[id] *      | integer | job id to get job name to run                 |
|                   |         | (used instead job name)                       |
+-------------------+---------+-----------------------------------------------+
| create[name] *    | string  | job name to run (used instead of jobid)       |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[level] *   | string  | Job level in short form.                      |
|                   |         | One case sensitive letter:                    |
|                   |         |    F => Full                                  |
|                   |         |    I => Incremental                           |
|                   |         |    D => Differential                          |
|                   |         |    B => Base                                  |
|                   |         |    f => VirtualFull                           |
|                   |         |    V => InitCatalog                           |
|                   |         |    C => Catalog                               |
|                   |         |    O => VolumeToCatalog                       |
|                   |         |    d => DiskToCatalog                         |
+-------------------+---------+-----------------------------------------------+
| create[fileset] * | string  | FileSet resource name                         |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[clientid] *| integer | Client identifier                             |
|                   |         | (used instead of client name)                 |
+-------------------+---------+-----------------------------------------------+
| create[client] *  | string  | Client name (used instead of client id)       |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[storageid]*| integer | Storage identifier                            |
|                   |         | (used instead of storage name)                |
+-------------------+---------+-----------------------------------------------+
| create[storage] * | string  | Storage name (used instead of storage id)     |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[poolid] *  | integer | Pool identifier (used instead of pool name)   |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[pool] *    | string  | Pool name (used instead of pool id)           |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[priority]  | integer | Job priority to run                           |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[jobid]     | integer | Job identifier for verify job                 |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[verifyjob] | string  | Verify job name                               |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+

* - required field

POST /api/jobs/restore/ - call restore action.

+-------------------------------------------------------------------------------+
|                       /api/jobs/restore/ POST request                         |
+---------------------+---------+-----------------------------------------------+
| Name                |  Type   |    Description                                |
+---------------------+---------+-----------------------------------------------+
| create[rpath] *     | string  | Bvfs temporary table name for restore purpose |
|                     |         | in form: b2[0-9]+                             |
+---------------------+---------+-----------------------------------------------+
| create[clientid] *  | integer | Client identifier                             |
|                     |         | (used instead of client name)                 |
+---------------------+---------+-----------------------------------------------+
| create[client] *    | string  | Client name (used instead of client id)       |
|                     |         |                                               |
+---------------------+---------+-----------------------------------------------+
| create[priority]    | integer | Job priority to run                           |
|                     |         |                                               |
+---------------------+---------+-----------------------------------------------+
| create[where] *     | string  | Destination directory for restored files      |
|                     |         |                                               |
+---------------------+---------+-----------------------------------------------+
| create[replace] *   | string  | Replace files in destination directory for    |
|                     |         | restored files. Available options:            |
|                     |         | - never                                       |
|                     |         | - ifolder                                     |
|                     |         | - ifnewer                                     |
|                     |         | - always                                      |
+---------------------+---------+-----------------------------------------------+
| create[restorejob]  | string  | Restore job name                              |
|                     |         |                                               |
+---------------------+---------+-----------------------------------------------+
| create[strip_prefix]| string  | Strip prefix from restored paths /etc         |
|                     |         |                                               |
+---------------------+---------+-----------------------------------------------+
| create[add_prefix]  | string  | Add prefix to restored paths /tmp/myetc       |
|                     |         | It can't be used with 'where' parameter       |
+---------------------+---------+-----------------------------------------------+
| create[add_suffix]  | string  | Add suffix to restored path e.g. .old         |
|                     |         |                                               |
+---------------------+---------+-----------------------------------------------+
| create[regex_where] | string  | Pattern matched for each restored path        |
|                     |         | e.g. !a.pdf!a.bkp.pdf!                        |
+---------------------+---------+-----------------------------------------------+

* - required field

DELETE /api/jobs/8 - delete by bconsole job with jobid equal 8.

Errors:

0 - No errors.

1 - Invalid command.

2 - Problem with connection to database.

3 - Database access is not supported by this API instance.

4 - Problem with connection to bconsole.

5 - Invalid director.

6 - Problem with authorization to Baculum API.

7 - Access attempt to not allowed resource. Permission denied.

11 - Bconsole support is disabled.

50 - Job with inputted jobid does not exist.

51 - Inputed job level is invalid.

52 - Fileset resource does not exist.

53 - Client does not exist.

54 - Storage does not exist.

55 - Pool does not exist.

56 - [restore only] inputted rpath for restore is invalid. Proper format is b2[0-9]+.

57 - [restore only] inputted "where" option is invalid.

58 - [restore only] inputted "replace" option is invalid.

1000 - internal error.

Bvfs

PUT /api/bvfs/lsdirs/ - listing from Bvfs cache directories

PUT /api/bvfs/lsdirs/limit/250 - listing from Bvfs cache directories limited to 250 elements.

PUT /api/bvfs/lsdirs/limit/250/100/ - listing from Bvfs cache directories limited to 250 elements with offset equal 100.

+-----------------------------------------------------------------------------+
|                      /api/bvfs/lsdirs/ PUT request                          |
+-------------------+---------+-----------------------------------------------+
| Name              |  Type   |    Description                                |
+-------------------+---------+-----------------------------------------------+
| update[jobids] *  | string  | Job identifiers separated by comma character  |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| update[path] *    | string  | Path to list directories in Bvfs job cache    |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+

PUT /api/bvfs/lsfiles/ - listing from Bvfs cache files.

PUT /api/bvfs/lsfiles/limit/60/ - listing from Bvfs cache files limited to 60 elements.

PUT /api/bvfs/lsfiles/limit/120/60/ - listing from Bvfs cache files limited to 120 elements with offset equal 60

+-----------------------------------------------------------------------------+
|                      /api/bvfs/lsfiles/ PUT request                         |
+-------------------+---------+-----------------------------------------------+
| Name              |  Type   |    Description                                |
+-------------------+---------+-----------------------------------------------+
| update[jobids] *  | string  | Job identifiers separated by comma character  |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| update[path] *    | string  | Path to list directories in Bvfs job cache    |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+

GET /api/bvfs/versions/abc-fd/123/456/789/ - listing from Bvfs cache all files versions for client named abc-fd, for jobid equal 123, for pathid equal 456 and for filenameid equal 789. URL-encoded client name is necessary.

GET /api/bvfs/getjobids/9/ - listing from Bvfs cache all elementary jobids which are necessary for restore all files from job with jobid equal 9 (eg. if jobid 9 is job type incremental or differential).

PUT /api/bvfs/update/ - updating Bvfs cache for specific job.

+-----------------------------------------------------------------------------+
|                      /api/bvfs/update/ PUT request                          |
+-------------------+---------+-----------------------------------------------+
| Name              |  Type   |    Description                                |
+-------------------+---------+-----------------------------------------------+
| update[jobids] *  | string  | Job identifiers separated by comma character  |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+

POST /api/bvfs/restore/ - preparing Bvfs paths for restore command.

+-----------------------------------------------------------------------------+
|                      /api/bvfs/restore/ POST request                        |
+-------------------+---------+-----------------------------------------------+
| Name              |  Type   |    Description                                |
+-------------------+---------+-----------------------------------------------+
| create[jobids] *  | string  | job identifiers comma separated               |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[dirid]     | string  | directory identifiers comma separated         |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[fileid]    | string  | file identifiers comma separated              |
|                   |         |                                               |
+-------------------+---------+-----------------------------------------------+
| create[findex]    | string  | comma separated pairs jobid and fileindex e.g.|
|                   |         | jobid1,findex1,jobid2,findex2                 |
|                   |         | Used to restore hardlinks                     |
+-------------------+---------+-----------------------------------------------+
| create[path] *    | string  | temporary Bvfs table table name               |
|                   |         | in form b2[0-9]+                              |
+-------------------+---------+-----------------------------------------------+

* - required field

PUT /api/bvfs/clear/ - call '.bvfs_clear_cache yes' bconsole command.

Errors:

0 - No errors.

1 - Invalid command.

2 - Problem with connection to database.

3 - Database access is not supported by this API instance.

4 - Problem with connection to bconsole.

5 - Invalid director.

6 - Problem with authorization to Baculum API.

7 - Access attempt to not allowed resource. Permission denied.

11 - Bconsole support is disabled.

71 - Inputted path for restore is invalid. Proper format is b2[0-9]+.

72 - Inputted BVFS path param is invalid.

73 - Invalid jobid list.

74 - Invalid fileid list.

75 - Invalid file index list.

76 - Invalid dirid list.

77 - Invalid client name.

1000 - Internal error.

Config

To configure the Bacula resources is used request in the following URL form:

PUT /api/config/COMPONENT_TYPE/RESOURCE_TYPE/RESOURCE_NAME

Example config URLs:

PUT /api/config/dir/Client/myclient-fd - editing client 'myclient-fd'. If the Client doesn't exist, it is created in config.

PUT /api/config/sd/Device/Drive-01 - editing device 'Drive-01'. If the Device doesn't exist, it is created in config.

+-----------------------------------------------------------------------------+
|    /api/config/component_type/resource_type/resource_name/ PUT request      |
+-------------------+---------+-----------------------------------------------+
| Name              |  Type   |    Description                                |
+-------------------+---------+-----------------------------------------------+
| update[config] *  | string  | Bacula config in JSON format.                 |
|                   | (JSON)  |                                               |
|                   |         | In versions lower than 9.0.6 instead of JSON  |
|                   |         | string there was used serialized associative  |
|                   |         | PHP array                                     |
+-------------------+---------+-----------------------------------------------+

* - required field

Errors:

0 - No errors.

6 - Problem with authorization to Baculum API.

7 - Access attempt to not allowed resource. Permission denied.

80 - JSON tools support is disabled.

81 - Problem with connection to a JSON tool.

82 - JSON tool returned wrong exitcode.

83 - JSON tool output was unable to parse.

84 - JSON tool not configured.

93 - Write to config file error.

94 - Config validation error.

1000 - Internal error.

Example cURL commands to test:

curl -X PUT -d update["config"]='{"AutoPrune":false,"Catalog":"MyCatalog",
"FdPort":9102,"MaximumConcurrentJobs":5,"Name":"easystar-fd","Address":
"172.16.10.12","Password":"mypass"}'
 http://user:pass@apihost:9096/api/config/dir/Client/easystar-fd

curl -X PUT -d update["config"]='{"RemovableMedia":true,"RandomAccess":false,
"AutomaticMount":true,"AlwaysOpen":true,"OfflineOnUnmount":true,"DeviceType":
"Tape","Name":"TapeDrive","MediaType":"LTO5","ArchiveDevice":"/dev/nst0",
"SpoolDirectory":"/mnt/backup","MaximumOpenWait":300}'
 http://user:pass@apihost:9096/api/config/sd/Device/TapeDrive

Installation from the Source Tar File

You may also install Baculum from the source bacula-gui tar archive.

To prepare Baculum runtime files one uses the Makefile file. To do this, after unpacking bacula-gui archive please go to Baculum main directory:

cd ./web/baculum/

Then please run (depending on used distribution):

For rpm-based distributions (example with /tmp/baculum-runtime destination directory):

make build DESTDIR=/tmp/baculum-runtime

For deb-based distributions (example with /tmp/baculum-runtime destination directory):

make build DESTDIR=/tmp/baculum-release SAMPLETYPE=deb-template \
HTTPDNAME=apache2 HTTPDSITECONF=sites-available

After execution above command, in path /tmp/baculum-runtime should contain all required runtime files.

The Base Baculum source files will be located in:

/tmp/baculum-runtime/usr/share/baculum/htdocs/

These are the files that should be placed in web server's document root (or Virtual Host document root) directory.

Please note that for language files (including English) symbolic links must be created as shown below:

/usr/share/locale/en/LC_MESSAGES/baculum.mo
 => /tmp/baculum-runtime/usr/share/baculum/htdocs/protected/Lang/en/baculum.mo

/usr/share/locale/pl/LC_MESSAGES/baculum.mo
 => /tmp/baculum-runtime/usr/share/baculum/htdocs/protected/Lang/pl/baculum.mo

/usr/share/locale/pt/LC_MESSAGES/baculum.mo
 => /tmp/baculum-runtime/usr/share/baculum/htdocs/protected/Lang/pt/baculum.mo

/usr/share/locale/ja/LC_MESSAGES/baculum.mo
 => /tmp/baculum-runtime/usr/share/baculum/htdocs/protected/Lang/ja/baculum.mo

Please also update the symbolic link to the Baculum settings directory in the following paths:

/tmp/baculum-runtime/usr/share/baculum/htdocs/protected/API/Config
/tmp/baculum-runtime/usr/share/baculum/htdocs/protected/Web/Config

Other files are: web servers configuration files, systemd units, SELinux policy module and others. Please select and copy appropriate files to your system environment and edit their content if needed.

You must set read/write privileges for the Web server user to the files and directories listed below:

./baculum/assets/
./baculum/protected/Web/Config
./baculum/protected/API/Config
./baculum/protected/Web/baculum.users
./baculum/protected/API/baculum.users
./baculum/protected/runtime/

OAuth2 authorization

Baculum API can use OAuth2 for authorization and authentication.

To obtain tokens there is used Authorization Code Grant flow. Authorization and access token URLs are as follows:

Authorization URL: /api/auth/
Access Token URL: /api/token/

Baculum API doesn't use refresh tokens. After expiration token the client application has to re-authorize again.

Default expiration time for authorization code is 7 seconds, for access token 60 seconds. These values are changed in:

/usr/share/baculum/htdocs/protected/Common/Class/OAuth2.php

in constants AUTHORIZATION_ID_EXPIRES_TIME and ACCESS_TOKEN_EXPIRES_TIME.

Default OAuth2 callback URL in Baculum Web is following:

https://baculumgui:9095/web/redirect

Before running OAuth2

Important note before using OAuth2

When you decide to use OAuth2, you must change default HTTP Basic authorization setting. Otherwise OAuth2 will not work. It is for enabling OAuth2 acces for /api/ endpoints but still keep HTTP Basic protection for the Baculum API panel pages.

For Apache the change is about switching in Baculum API Apache config the Location tag from / to /api/page.

# NOTE: When you use OAuth2 then change this location section
# From: <Location />
# To:   <Location /api/page>
#
<Location />
        AuthType Basic
        AuthName "Baculum Auth"
        AuthUserFile /usr/share/baculum/htdocs/protected/API/Config/baculum.users
        Require valid-user
</Location>

For Lighttpd the change is about uncommenting in API Lighttpd config lines as described in comment below.

#
# Uncomment this line and closing braces below when you use OAuth2
#
# $HTTP["url"] =~ "^/web/page/.*$" {
        auth.backend = "htpasswd"
        auth.backend.htpasswd.userfile = "/usr/share/baculum/htdocs/protected/API/Config/baculum.users"
        auth.require = ( "/" => (
                "method" => "basic",
                "realm" => "Baculum Auth",
                "require" => "valid-user"
                )
        )
# }

Screenshots

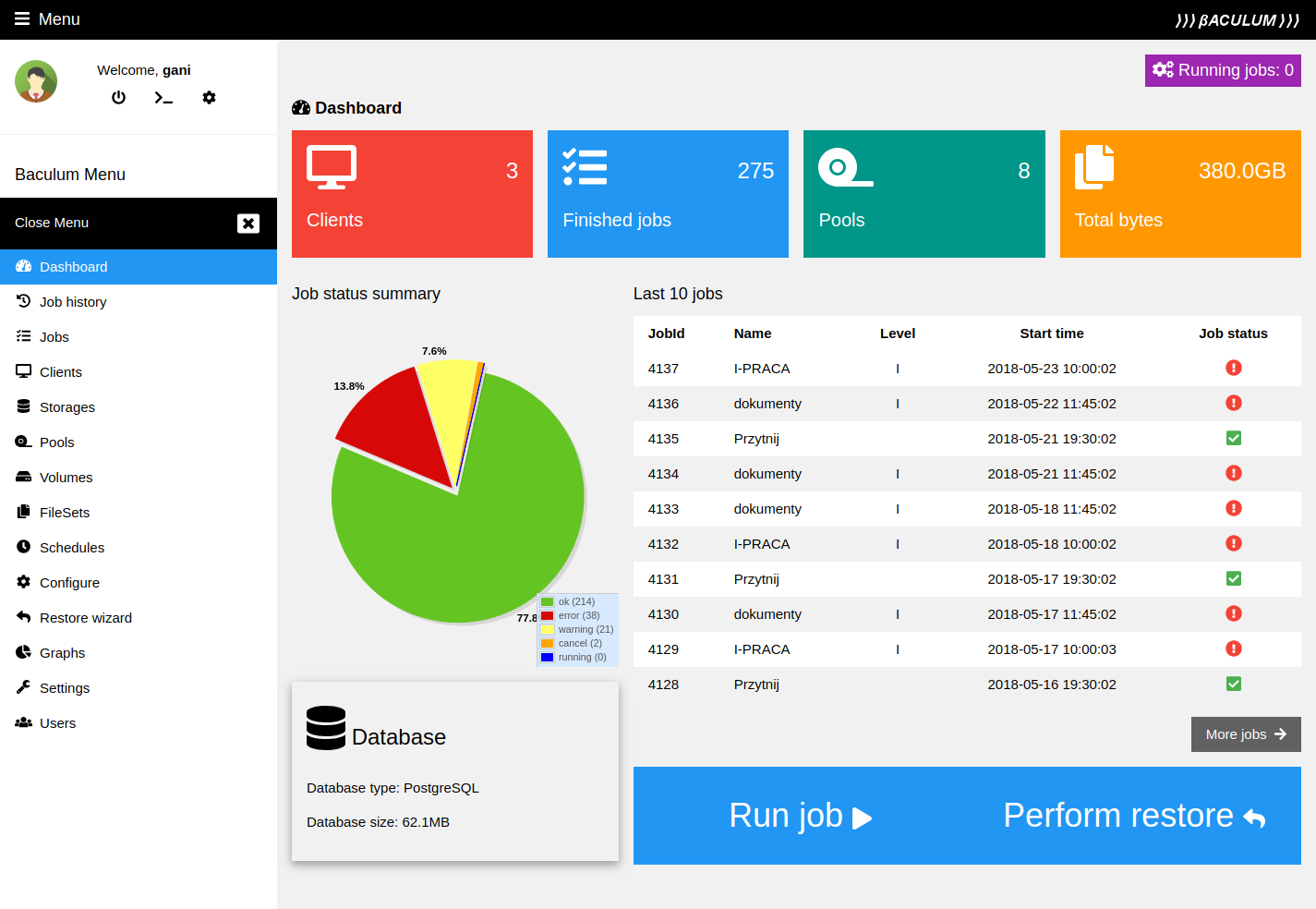

Image baculum01

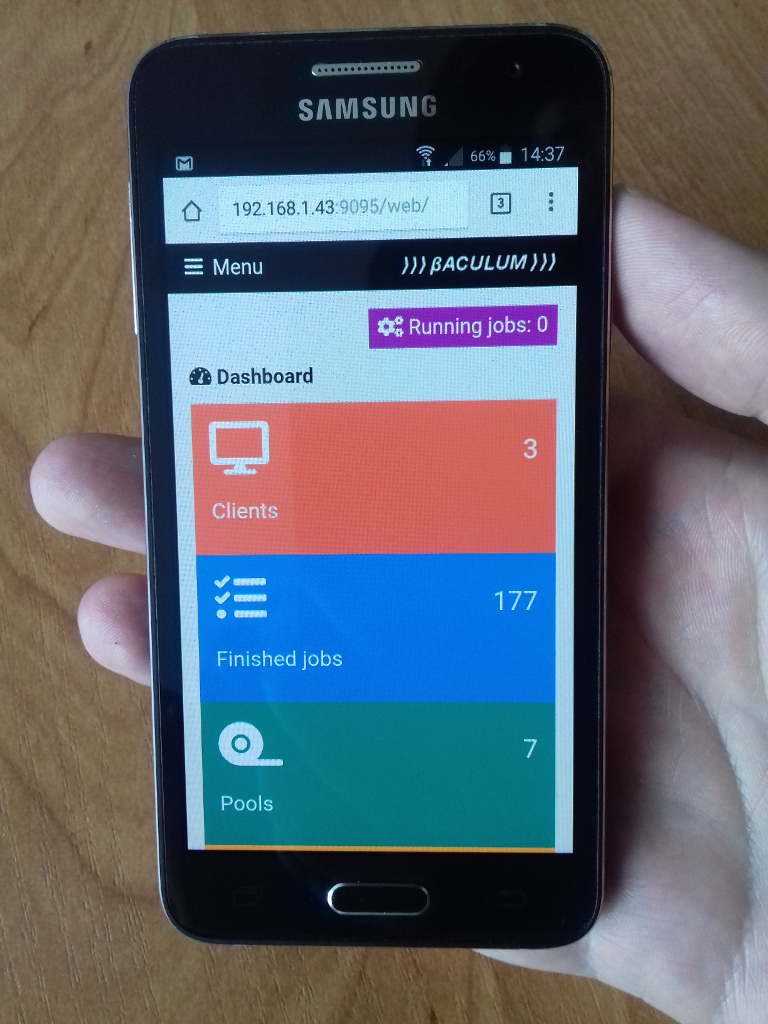

Image baculum02

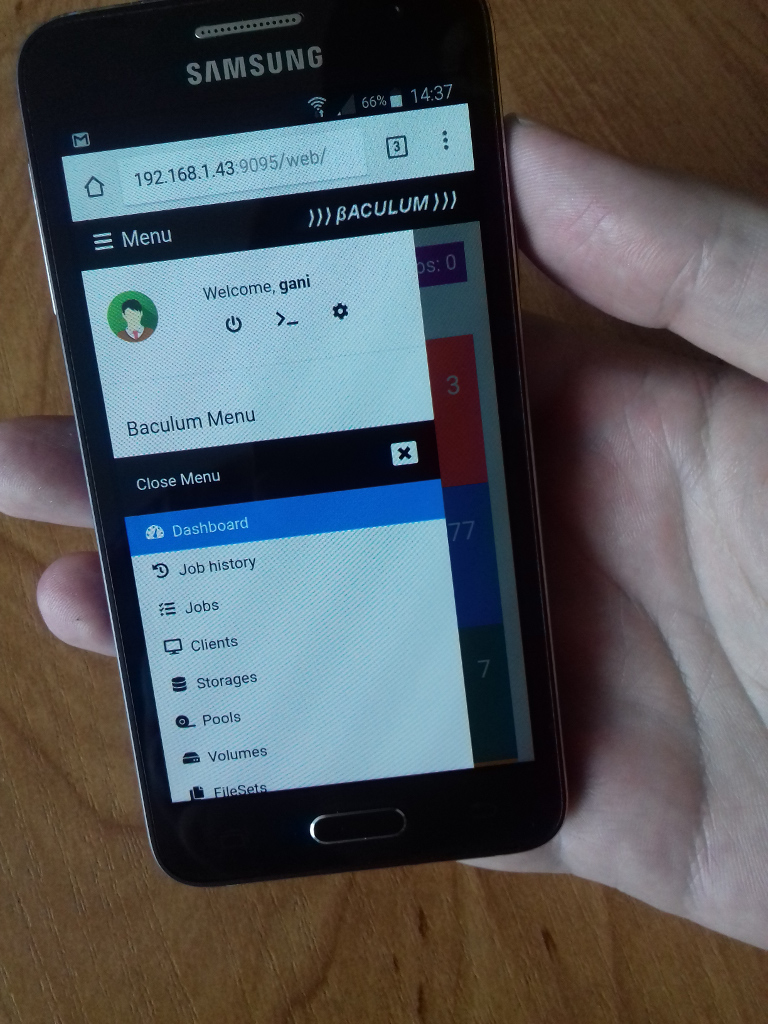

Image baculum03

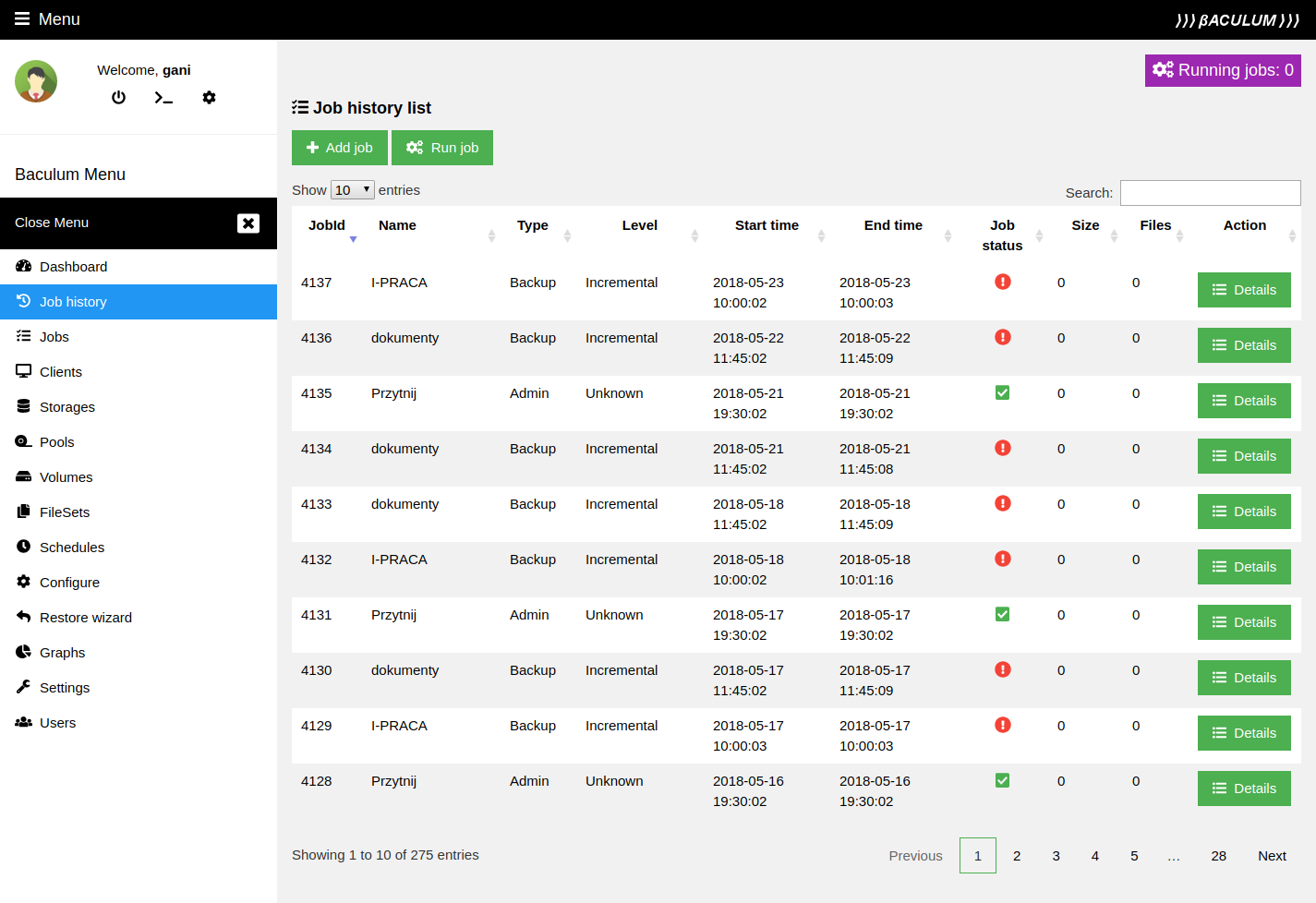

Image baculum04

Image baculum05

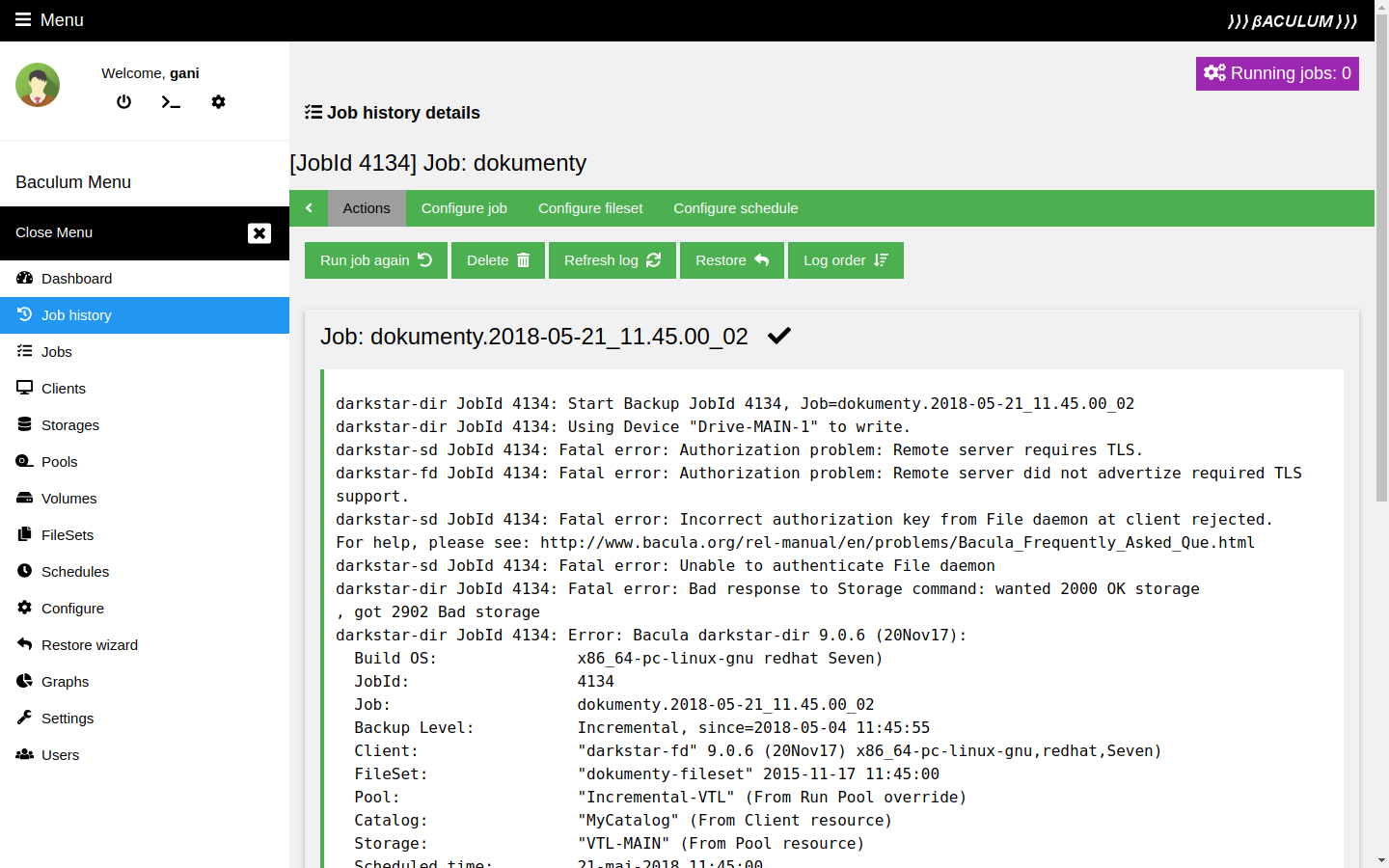

Image baculum06

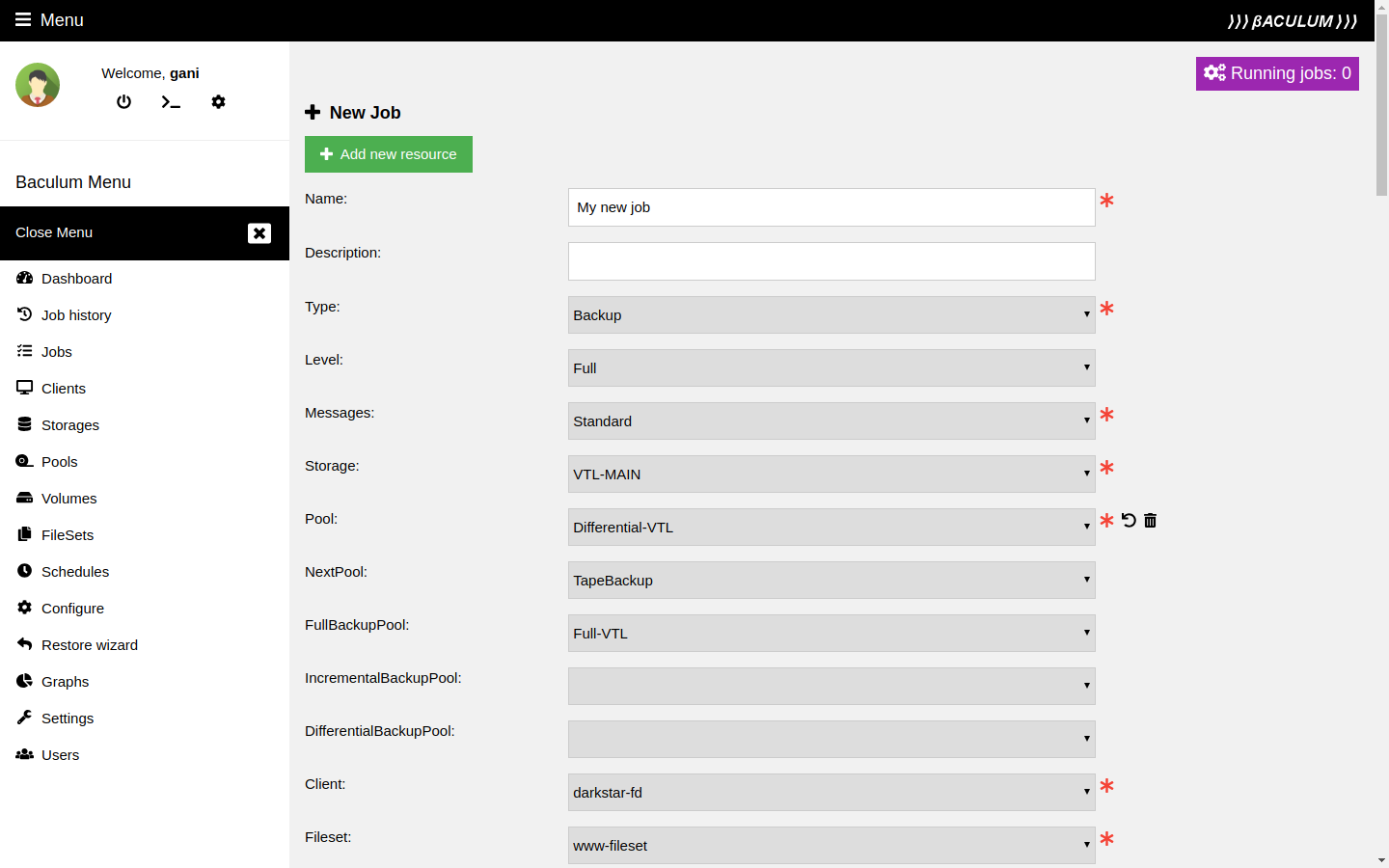

Image baculum07
